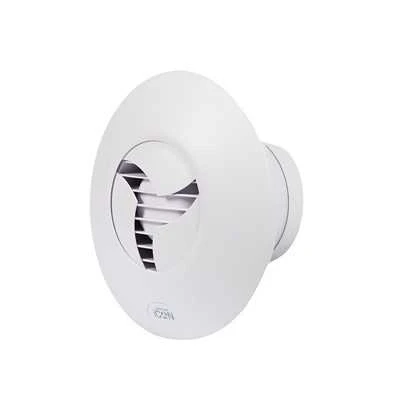

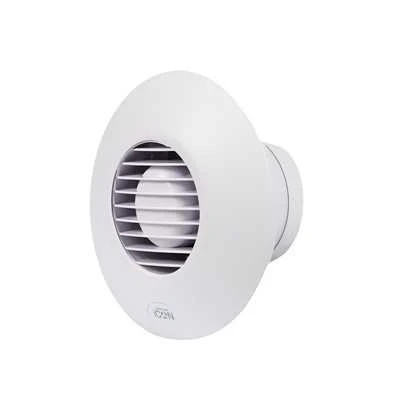

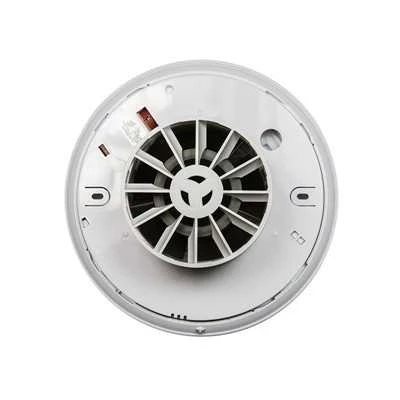

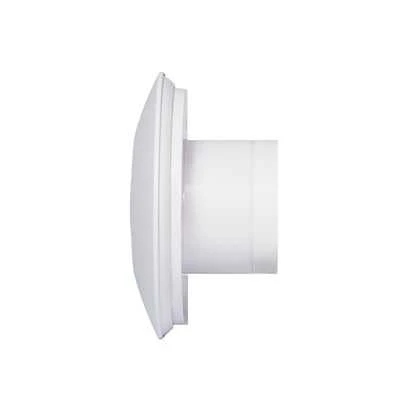

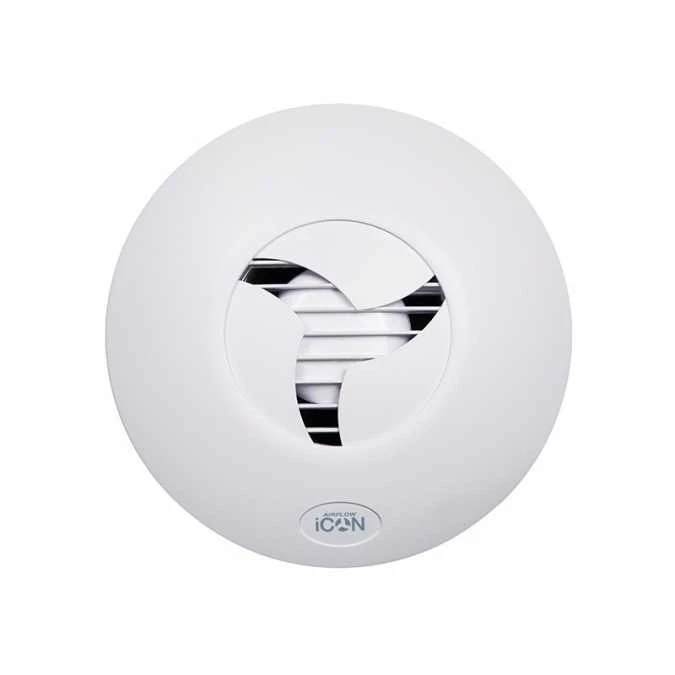

Airflow Icon15 Eco Bathroom Extractor Fan Auto Opening Shutter
Model 72683501
Airflow iCon 15 Bathroom Extractor Fan Features A Unique Slow Opening & Close Closing Outlet and is available in White with an optional Silver, Anthrocite, Sandstone or Chrome covers allowing you to match your bathroom design. Icon15 Fan also feature a modual system allowing overrun timers, humidity sensors and pull court to be installed in the fan without having to replace or remove the fan.
Icon15 is ideal for toilets, en-suites, shower rooms and bathrooms. Recessed into the wall or ceiling, it is stylish and unobtrusive, even in the smallest space. The quiet, powerful axial fan has been designed with efficiency in mind.
Flow rate up to 21 l/sec ( 76 m3/hr). Ductable up to 4m. A quick, 4″ core drilled hole enables immediate fixing of iCON 15. The twist on/off cover requires only a single side entry fixing screw. Cantilever fixing lugs enable recessed installation on uneven surfaces. The snap-in control module is quick to fit and wire.
Tiling is a breeze with the circular cover flange, reducing the need to make good. One wipe and the cover is clean. The unique iris shutter, prevents back draughts, operates silently and helps reduce noise ingress. Interchangeable control modules enable you to match the fan control to installation requirements. Complies with latest Building Regulations (F1 ventilation). Splashproof with a wipe clean cover and a comprehensive range of accessories.
BEAB approved
Icon 15 Main Features:
- Flow rate up to 19 l/sec (69 m³/hr)
- Ductable for short runs
- Silent shutter
- Stylish design
- Low energy, quiet in use
- Complies with latest Building Regulations (F1 ventilation)
- Choice of optional control
- Wall/ceiling, recessed mounting
- Upgrade your cover colour to match décor
- 3 year warranty
Icon 15 Slow Opening Iris
