Airflow Icon 15s Low Voltage 12v Bathroom Extactor Fan

Airflow iCON eco15s Bathroom Extractor Fan

iCON 15 is ideal for toilets, en-suites, shower rooms and bathrooms.

Recessed into the wall or ceiling, it is stylish and unobtrusive, even in the smallest space. The quiet axial fan has been designed with simplicity in mind. A quick, core drilled hole enables immediate fixing of iCON 15. The twist on/off cover requires only a single side entry fixing screw. Cantilever fixing lugs enable recessed installation on uneven surfaces.

The optional ‘snap-in’ module is quick to fit and wire. Tiling is a breeze with the circular cover flange, reducing the need to ‘make good’ and one wipe and the cover is clean. Stylish, slim and unobtrusive in walls or ceilings. Unique iris shutter, prevents back draughts, operates silently and helps reduce noise ingress.

Interchangeable control modules match fan to installation requirements. Splash-proof, tiling friendly, wipe clean cover. Fan operates by remote switch (optional). No module required.

iCON eco15 Features:

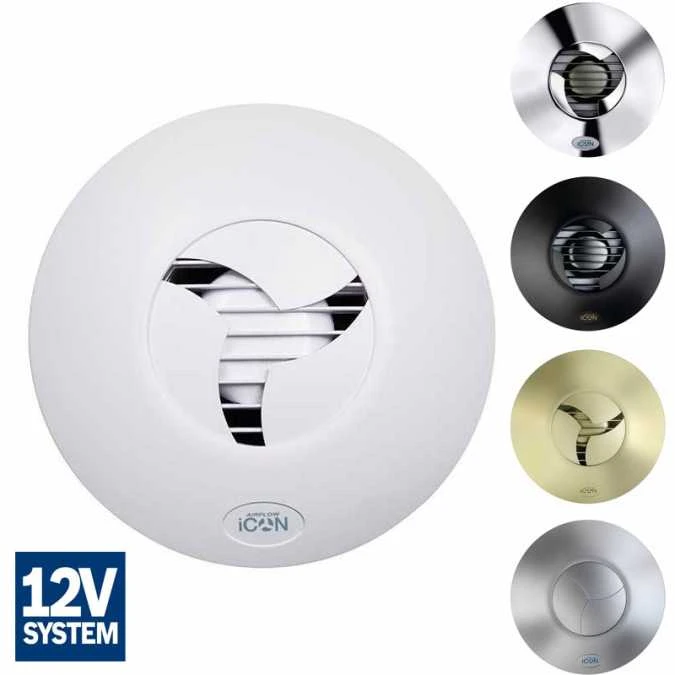

• Wide Range of Colour Options
• Easy to fit, slim profile for wall / ceiling mounting
• Low Power Consumption
• Very Quiet Operation
• Design Feature Helps Reduce External Noise
• 100mm Axial Fan
• Ductable up to 4m
• Stylish Cirular Design
• Interchangeable Modules Available To Suite Installation

iCON eco15 Specs:

• Power Supply: 230-240 Volt/1PH/50Hz
• Power Consumption: 9.2w
• Noise Level: (35dB(A))
• SPF (Specific Fan Power): 0.49 w/l/s
• Extraction Performance: Upto 18.6 l/sec 67 m3/hr
• Water Rating: IPX4 Protected
• Product Code: 72683701 (White Cover)
