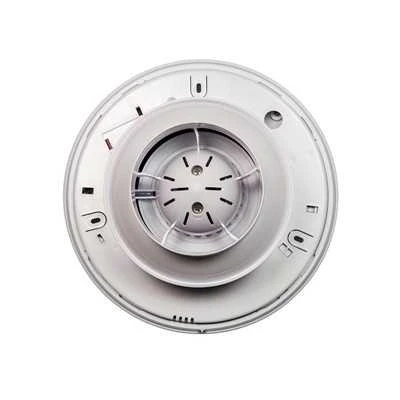

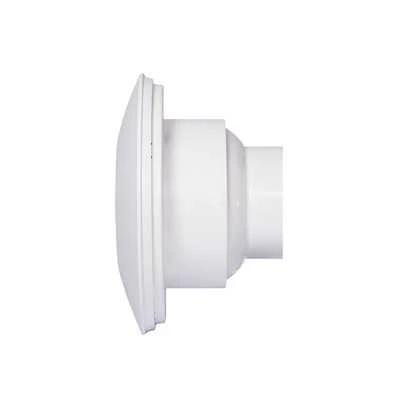

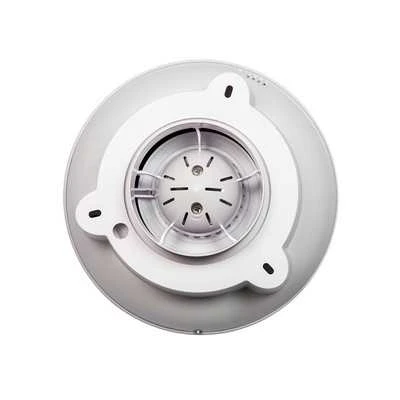

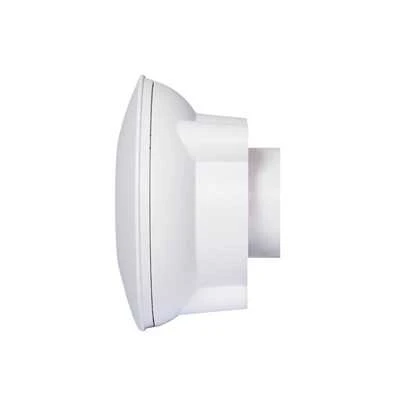

Airflow Icon 30 Large Bathroom Extractor Fan
Airflow Icon30 Bathroom extractor fan is larger brother to the Icon15 bathroom Extractor Fan offering a larger extraction volume. Airflow iCon range of Bathroom Extractor Fan Features A Unique Slow Opening & Close Closing Outlet and is available in White with an optional Silver, Anthrocite, Sandstone or Chrome covers allowing you to match your bathroom design. Icon range of bathroom Fans also feature a modual system allowing overrun timers, humidity sensors and pull court to be installed in the fan without having to replace or remove the fan.
Icon30 is ideal for Larger bathrooms, toilets, en-suites, shower rooms and bathrooms. Recessed into the wall or ceiling, it is stylish and unobtrusive, even in the smallest space. The quiet, powerful axial fan has been designed with efficiency in mind.
Flow rate up to 32 l/sec (118 m3/hr). Ductable up to 9m. A quick, 4″ core drilled hole enables immediate fixing of iCON 30. The twist on/off cover requires only a single side entry fixing screw. Cantilever fixing lugs enable installation on uneven surfaces. The snap-in control module is quick to fit and wire.
Tiling is a breeze with the circular cover flange, reducing the need to make good. One wipe and the cover is clean. The unique iris shutter, prevents back draughts, operates silently and helps reduce noise ingress. Interchangeable control modules enable you to match the fan control to installation requirements. Complies with latest Building Regulations (F1 ventilation). Splashproof with a wipe clean cover and a comprehensive range of accessories.
BEAB approved.
Icon 30 Main Features:
- Flow rate up to 32 l/sec (117 m3/hr)
- Ductable for short runs. Silent shutter
- Stylish design
- Low energy, quiet in use
- Complies with latest Building Regulations (F1 ventilation)

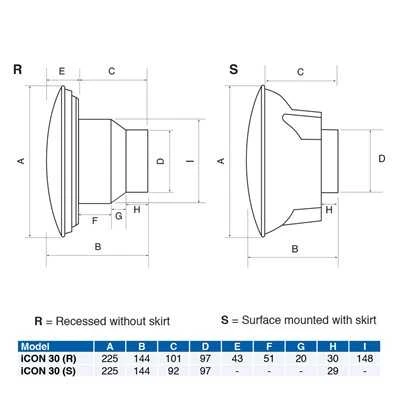

- Surface or recessed mounting
- Choice of optional control modules
- Upgrade your cover colour to match décor
- 3 year warranty
Icon Slow Opening Iris
Video shows an icon 15, icon 30 operates in the same manor.
