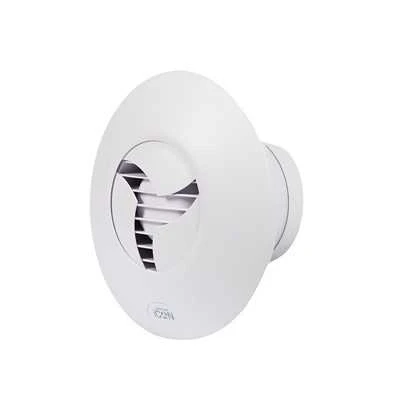

Airflow Icon 30S Low Voltage 12v Bathroom Extractor Fan

Airflow Icon 30S Bathroom Extactor Fan 12V DC Low Voltage White

iCON30s is the larger brother to the Icon15s 12v Extractor Fan and the 12v version of the standard 240v icon30 bathroom extractor fan.

iCON 30S is ideal for larger toilets and bathrooms, wet zones (1 and higher) en-suites, shower rooms and bathrooms. Recessed into the wall or ceiling, it is stylish and unobtrusive, even in the smallest space. The quiet, powerful axial fan has a ball bearing motor for longer life and has been designed with simplicity in mind. The 12V DC fan conveniently has its controls in the fan and not the transformer. A quick, core drilled hole enables immediate fixing of iCON 15S. The twist on/off cover requires only a single side entry fixing screw. Cantilever fixing lugs enable recessed installation on uneven surfaces.

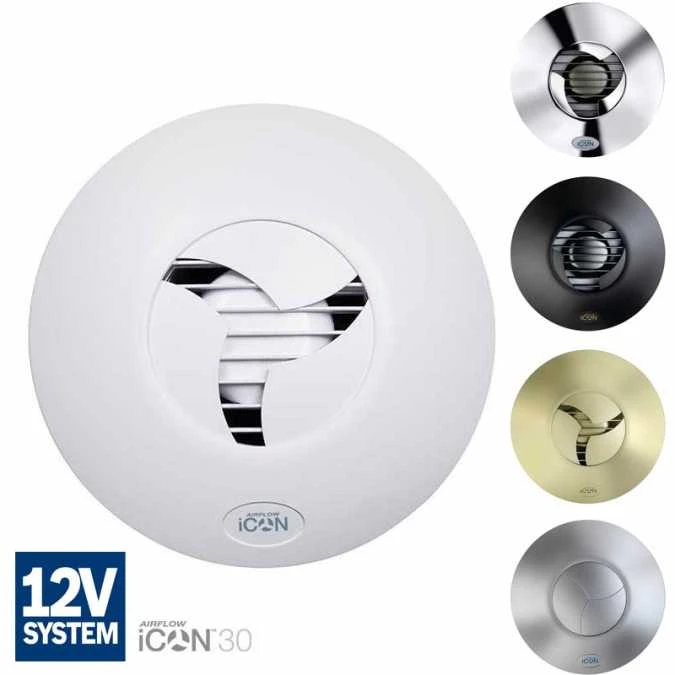

Available in White with an optional Silver, Anthrocite, Sandstone or Chrome covers allowing you to match your bathroom design. Icon15 Fan also feature a modual system allowing overrun timers, humidity sensors and pull court to be installed in the fan without having to replace or remove the fan.

The optional ‘snap-in’ module is quick to fit and wire. Tiling is a breeze with the circular cover flange, reducing the need to ‘make good’ and one wipe and the cover is clean. Stylish, slim and unobtrusive in walls or ceilings. Unique iris shutter prevents back draughts, operates silently and helps reduce noise ingress. Interchangeable low voltage control modules match fan to installation requirements.

Low Voltage fans are for use in areas where a 240volt fan would not be suitable and a higher IP rateing is required.

Airflow Icon 30s Low Voltage Spec

• Transformer Included
• SFP compliant (0.38 w/l/s) and meets 2010 Building Regulations
• 100mm (4’’) axial fan with 12v DC transformer
• Flow rate up to 34.25 l/sec (123.3 m3/hr)
• Power consumption only 13 watts
• Flow rate up to 34.25 l/sec (123.3 m3/hr)
• Quiet operation, Silent shutter
• Universal Voltage 110/240v – 50/60Hz
• Ductable up to 9m
• Stylish, easy to fit, slim profile
• Wall/ceiling, surface/recessed mounting
• Interchangeable control modules match fan to installation
• Choice of Silver, Sandstone, Chrome & Anthracite covers
• IPX4 Protection
• 3 year warranty
• 72683801
